Steam autoclaves, tailored to your requirements

Everything has to fit! We take into account the available media, the equipment and the installation situation, including the cleanroom class and safety level. How is loading and unloading carried out? What process risks need to be considered? Our interdisciplinary team from application technology, sales and engineering will design a solution for you that is individually tailored to your needs. You can rely on more than 135 years of experience – in the end, everything fits!

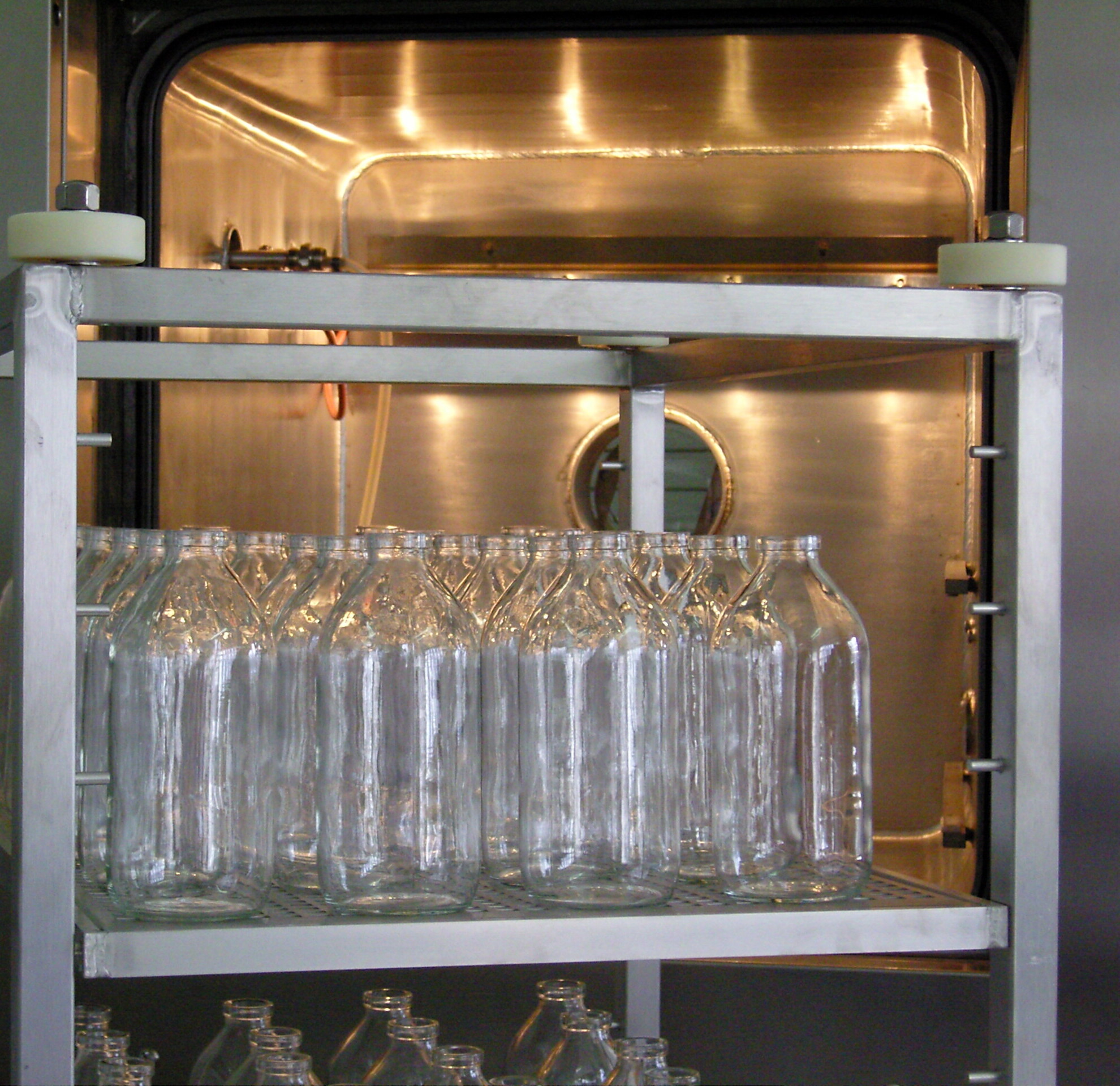

Sterilizer chamber 760 l, electropolished, steam autoclave

The sterilizer chamber

Calculation and design of the chamber and heating fins in accordance with PED 2014/68/EU, based on your requirements regarding materials, dimensions, chamber base gradient, working pressure and number of load cycles
Surfaces of the chamber, doors and chamber internals polished (<1.2 µm), or electropolished (< 0.8 µm). Other surface finishes (e.g. mirror polished) on request
Chamber connections as hygienic or aseptic flanges or clamps, in accordance with relevant DIN/EN standards or your factory standard
Loading height by arrangement at waist height, 30 cm above the floor or at floor level when installed in a floor pit

The quality

Pipe classes according to relevant DIN/EN standards, e.g. DIN EN 11866 or according to your factory standard
Connections in the system or at the delivery limit as welding ends, hygienic or aseptic flanges or clamps, in accordance with the relevant DIN/EN standards or your factory standard
Drainable piping system, low dead space, e.g. 1.5 D, according to your requirements / factory standard
Gas-tight partition wall to maintain your cleanroom atmosphere
Cleanroom-compatible system front with hygiene locks and disinfectable surfaces
